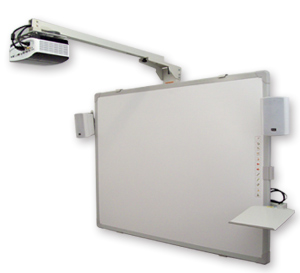

This simple to construct frame comes with all hardware required to mount every short throw & ultra short throw data projector currently on the market. The universal board clamps will allow for virtually all Interactive White Boards or standard whiteboards to be mounted easily in minutes.
With only simple hand tools required for construction, this system takes the engineering & complexity out of mounting Data Projectors & Interactive White Boards. The easy to follow guide will walk you through construction of the frame. These Instructions guide the user on how to mount the data projector in relation to the board. For mounting to a surface (wall) refer to the relevant Australian Standards.
The cable kit contains. Cable Kit – 5m VGA, 3m Power, 1.5m 3.5 ST RCA, 5m RCA leads and a four outlet power board. Connect all relevant leads, plug the power board into a GPO (240v socket) connect the data cable and you are ready to use your new electronic teaching aid.
One of our user friendly design features is the Accessory Pack(UWMA) which includes the Laptop Arm. This Arm sits out from the frame allowing a Laptop to be used where ever the frame is situated. Also the universal width adjustable speaker brackets allow the speakers to be mounted to the sides of the frame.
Accessories:
Laptop Arm & Speaker Brackets
Features:
Easy to construct in minutes with basic hand tools
Universal Data Projector Mounting Plate
Short Throw & Ultra Short Throw Boom Arm
Universal Board Clamps
Easy to follow Data Projector mounting Guide
Per drilled for 450mm & 600mm wall stud centers
Cables Kit and 4 outlet power board supplied
Colour - Surfmist (off white)
Uses:
All current Short Throw & Ultra Short Throw Data Projectors.
Mounts virtually all Interactive White Boards and Standard white Boards.
Specifications:
Frame 1100mm wide 1300mm high
Ultra Short Throw arm length 300-500mm Max Weight 7Kg’s
Short Throw arm length 1000-1200mm Max weight 4Kg’s
Weight 24Kg
Board clamps range 1150 -1370mm and mounts boards to 40mm width
Cable Kit – 5m VGA, 3m Power, 1.5m 3.5 ST RCA, 5m RCA Video
4 Outlet metal enclosed power board with surge protection RFI & EMI filters and 1.2m power cord.
Note: Measurements taken from centre of Mount plate (center of Data Projector lens offset may vary)
Warranty:
2 Year Limited Replacement on all Manufactures Parts, Power board & Cable Kit
